This octal 3-STATE bus driver is designed to provide the designer with flexibility in implementing a bus interface with memory, microprocessor, or communication systems. This device offers 64-extended temperature Grade product guaranteeing performance from -40?C to +85?C. The output 3-STATE gating control is organized into two separate groups of four buffers, and both control inputs enable the respective outputs when set logic LOW. The 3-STATE circuitry contains a feature that maintains the buffer outputs in3-STATE (high impedance state) during power supply ramp-up or ramp-down. This eliminates bus glitching problems that arise during power-up and power-down.

Features:
Advanced low power oxide-isolated ion-implanted Schottky TTL process
Functional and pin compatible with the 74LS counterpart
Improved switching performance with less power dissipation compared with the 74LS counterpart
Switching response specified into 500W and 50 pF load
Switching response specifications guaranteed over full temperature and VCC supply range
PNP input design reduces input loading

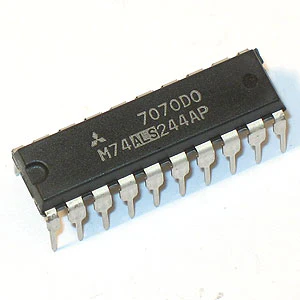

20 pin DIP. Manufactured by Mitsubishi.
A10948
