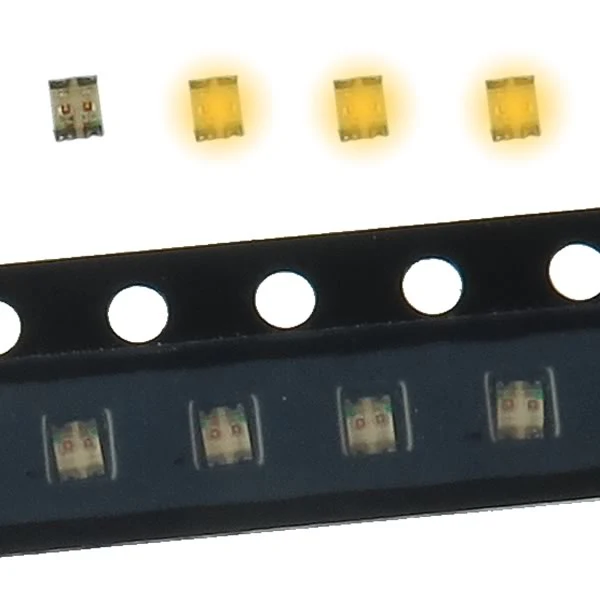

Bi-Color Green/Yellow SMD LED from Kingbright features 2 independent LEDs in a single surface mount package. Typical forward voltage is 2.2VDC Green) and 2.1VDC (Yellow). Forward current is 20mA. Power Dissipation is 62.5 mW (Green) and 75mW (Yellow). Typical Luminous Intensity (@20mA) is 12mcd for Green and 8mcd for Yellow. Viewing angle is 150. Dominant Wavelengths are 568 nm (Green) and 588 nm (Yellow). Material is GaP (Green) and GaAsP/GaP (Yellow). Surface mount package with overall size of 1.6mm long x 1.25mm wide x 0.65mm tall. On tape and reel. Kingbright Part# APTB1612YSGC. Sold in a package of 20.
